HV777A+

HV777A+



  Torque (6.0V): 29.5 kg-cm / 409.7 oz-in

  Torque (7.4V): 36.5 kg-cm /  506.9 oz-in

  Torque (8.2V): 40.4 kg-cm /  561.1 oz-in

  Speed:  0.13 s (6.0V)  /  0.11 s (7.4V)  /  0.10 s (8.2V)

  Weight: 75.45 g  (2.66 oz)

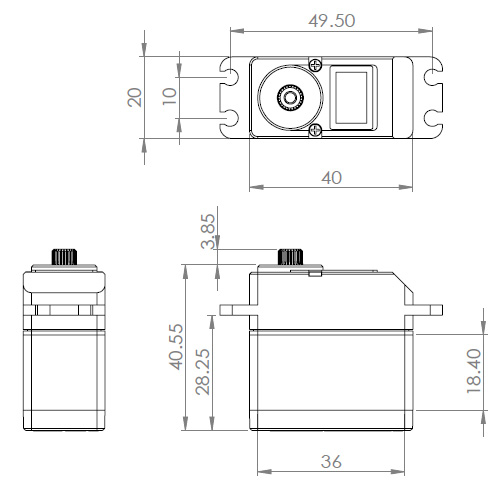

Dimension:40 x 20 x 40 mm

SERVO SPECIFICATION
Torque (kg-cm) 29.5 (6.0V) / 36.5 (7.4V) / 40.4 (8.2V)
Torque (oz-in) 409.7 (6.0V) / 506.9 (7.4V) / 561.1 (8.2V)
Speed 0.13 s (6.0V) / 0.11 s (7.4V) / 0.10 s (8.2V)
Stall Current (at locked load) 7.5A (6.0V) / 9.3A (7.4V) / 10.3A (8.2V)
Working Voltage 6.0V ~ 8.4V DC Volts
Working Frequency 1520μs / 333Hz
Dead Band 0.0008ms (Default)
Bearing 2* Ball Bearing
Gear Metal Alloy Gear
Motor Japanese-made Coreless Motor

$145.00

  • Product Code: S0011007
  • Availability: In Stock
  • $145.00
  • Ex Tax: $145.00
